What is the Difference Between Single Turn and Multi-Turn Potentiometers?

If you’ve ever dealt with electronics, you’ve probably come across a potentiometer, but what exactly is it? And why does it matter if it's a single turn or a multi-turn? Well, buckle up because we're diving deep into the world of potentiometers today. Spoiler alert: the number of turns can change everything, from precision to usability!

What is a Potentiometer?

At its core, a potentiometer is a type of adjustable resistor. It allows you to change resistance in a circuit by moving a dial or slider. You might have seen them in volume knobs on old radios or as part of tuning circuits. Simply put, it's like the volume control of the electricity flowing through a circuit.

Why are Potentiometers Important?

Imagine trying to adjust the volume on your headphones without a dial – it would either be blaring loud or completely silent! Potentiometers help to fine-tune the voltage or current in a circuit, providing that smooth transition from zero to max, and everything in between.

Overview of Single Turn Potentiometers

Now that we’ve covered the basics, let’s break down the different types, starting with the single turn potentiometer.

Definition of Single Turn Potentiometers

A single turn potentiometer is exactly what it sounds like – a potentiometer that only needs a single 360-degree rotation to go from its minimum to maximum resistance value. Think of it like turning a doorknob: one full turn, and you're done.

How Single Turn Potentiometers Work

Single turn potentiometers work by rotating a shaft that moves a wiper across a resistive element. The position of this wiper determines the resistance. It’s quick, simple, and efficient for situations where you don’t need a lot of precision.

Common Applications of Single Turn Potentiometers

These are commonly used in devices where rapid adjustments are necessary but ultra-fine control is not. You'll find them in basic lighting dimmers, audio controls, and simple tuning applications.

Overview of Multi-Turn Potentiometers

Now, let’s move on to their more refined cousin: the multi-turn potentiometer.

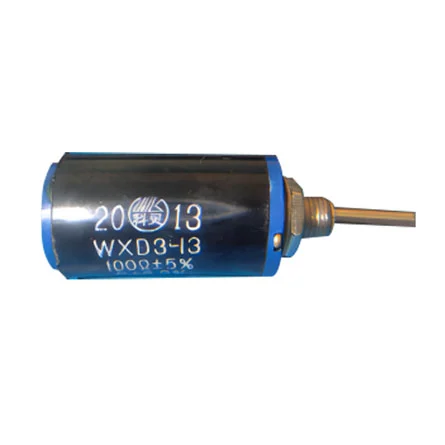

Definition of Multi-Turn Potentiometers

A multi-turn potentiometer, unlike the single turn version, requires multiple rotations (usually between 3 and 20) to move from its minimum to maximum resistance. It’s like winding up a watch; slow and steady wins the race.

How Multi-Turn Potentiometers Work

Instead of a single turn, these potentiometers have a mechanism that allows for multiple rotations, which spreads the adjustment across a larger range. This gives you much more precision, as small adjustments to the dial result in minor changes to the resistance.

Common Applications of Multi-Turn Potentiometers

You'll find multi-turn potentiometers in situations where precision is key, like in calibration equipment, sensitive sensors, or tuning high-frequency circuits. If you're working with something that needs minute adjustments, this is the tool for the job.

Key Differences Between Single Turn and Multi-Turn Potentiometers

Here’s where things get really interesting – what sets these two types apart?

Precision and Accuracy

Multi-turn potentiometers offer far more precision than single turn ones. Because the adjustment is spread over several turns, you can make much finer changes to the resistance.

Range of Adjustment

With a single turn potentiometer, you’re limited to one 360-degree sweep, so the adjustment range is shorter. In contrast, multi-turn potentiometers give you a larger range of adjustment over multiple turns, allowing for finer control.

Physical Design

Single turn potentiometers are generally smaller and simpler in design. Multi-turn versions, on the other hand, often include more complex gearing mechanisms to handle the multiple rotations.

Durability and Lifespan

Multi-turn potentiometers typically have a longer lifespan because the wear is spread over several rotations, while single turn potentiometers, constantly adjusted over a small range, tend to wear out quicker.

Which One Should You Choose?

Now, this begs the question: which one is right for you?

Application-Specific Needs

If you need quick adjustments without precision, go for a single turn potentiometer. However, if your project demands fine control, like in audio or calibration settings, a multi-turn potentiometer is your best bet.

Budget Considerations

Single turn potentiometers are generally cheaper and more widely available. Multi-turn potentiometers, with their more complex design, often come at a higher cost. If you're working on a budget and don’t need extreme precision, a single turn potentiometer might be the better option.

Advantages of Single Turn Potentiometers

Let’s break down the key advantages of the single turn variety.

Quick Adjustments

If speed is of the essence, single turn potentiometers win hands down. They allow you to move from minimum to maximum resistance with a single, swift motion.

Easy to Use for Beginners

For those just starting out with electronics, single turn potentiometers are more intuitive and easier to manage. No need to worry about making endless rotations!

Advantages of Multi-Turn Potentiometers

So what makes multi-turn potentiometers a better choice in some situations?

High Precision and Fine Control

Multi-turn potentiometers shine when you need extreme precision. Whether you’re adjusting sensitive instruments or fine-tuning a circuit, these potentiometers give you full control over the adjustment.

Ideal for Sensitive Applications

If you're working with high-frequency circuits or calibration equipment, multi-turn potentiometers are almost always the go-to choice.

Disadvantages of Single Turn Potentiometers

Even with their perks, single turn potentiometers have their downsides.

Limited Precision

The single rotation limits how fine of an adjustment you can make. It’s not ideal when you need pinpoint accuracy.

Shorter Adjustment Range

The limited range of motion means you can’t make as broad or as fine adjustments as you can with a multi-turn potentiometer.

Disadvantages of Multi-Turn Potentiometers

As great as multi-turn potentiometers can be, they’re not without flaws.

Slower Adjustments

If you’re looking to make rapid adjustments, multi-turn potentiometers can feel slow and cumbersome. It’s like trying to tighten a bolt with too many threads – it takes time.

More Complex for Beginners

The complexity of multi-turn potentiometers can be overwhelming for beginners, especially those unfamiliar with making fine adjustments.

In summary, the choice between a single turn and a multi-turn potentiometer boils down to your specific project needs. If you value speed and simplicity, a single turn potentiometer will get the job done. But if precision and control are essential, the extra turns of a multi-turn potentiometer are well worth the investment. Ultimately, there’s no “one size fits all” – just the right tool for the right job.
