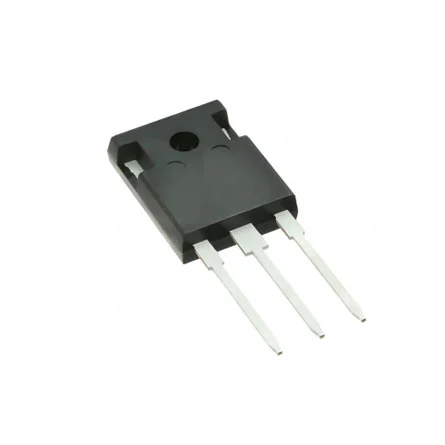

SGW25N120

Name: SGW25N120
Brand: Jinjiana Electronic Co.,Ltd.
Availability: InStock

Buy SGW25N120

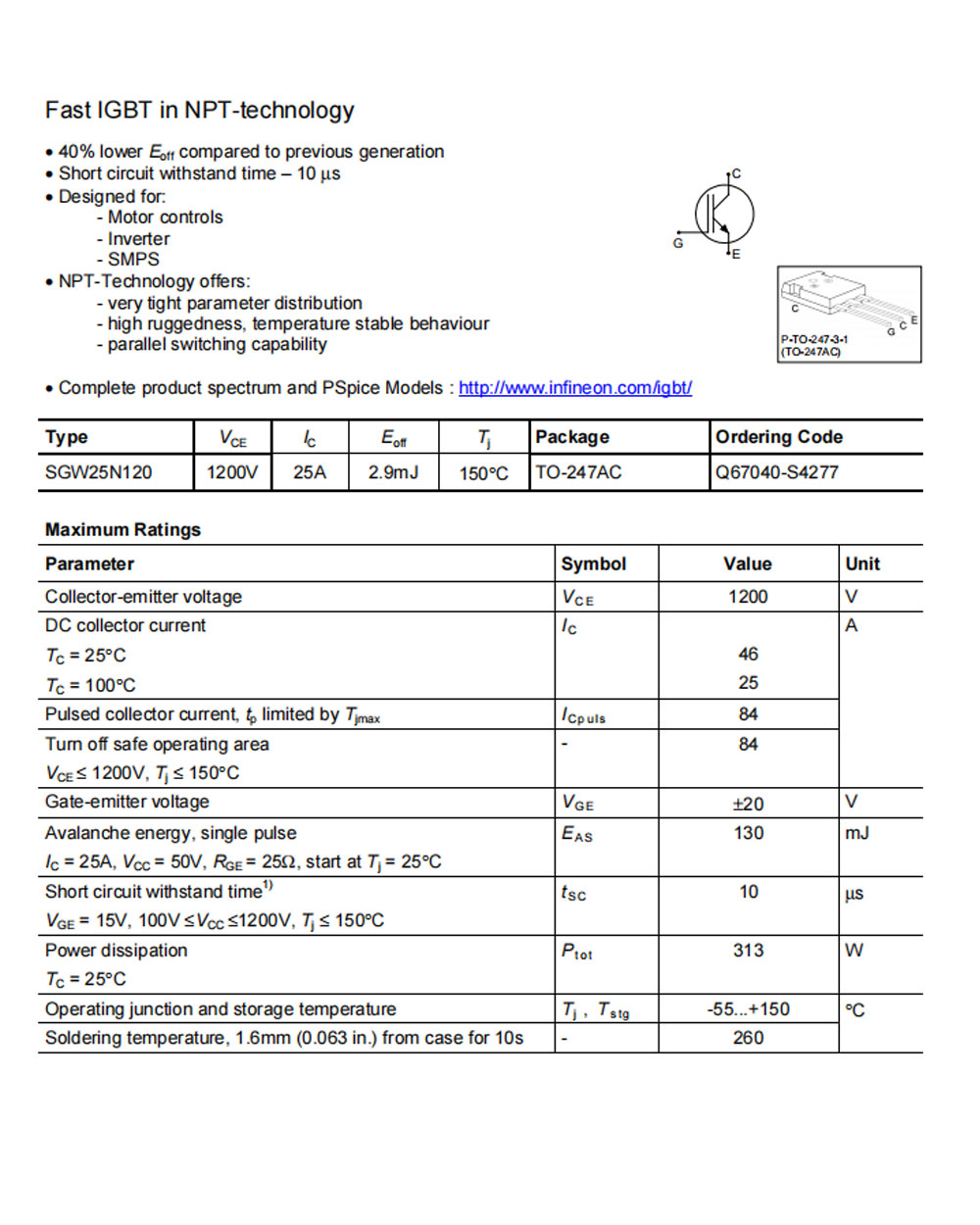

SGW25N120 Overview

SGW25N120 is a high voltage N-channel Dual IGBT (Insulated Gate Bipolar Transistor) manufactured by Infineon Technologies. It is a high-performance IGBT with a maximum voltage rating of 1200V and a current rating of 25A.

The SGW25N120 features a low saturation voltage of 1.7V, which helps to reduce power dissipation and improve energy efficiency. The device also has a fast switching time of 36ns, making it suitable for a wide range of high-frequency applications.

The SGW25N120 consists of two IGBTs mounted in a single package format. This configuration enables the IGBT device to handle high currents while remaining compact, which helps to lower the system cost. The device operates in either a parallel or a series configuration, which provides flexibility and expands the range of applications.

The SGW25N120 is integrated with a co-packed diode, which ensures fast and efficient switching. It also has a robust and reliable design, which helps to ensure that the device can operate under high-temperature conditions.

The SGW25N120 is commonly used in various high-power applications, such as solar inverters, uninterruptible power supplies, motor control, and welding applications. With its high voltage and current capability, fast-switching speed, and robust design, the SGW25N120 is ideal for various power engineering applications.

Overall, the SGW25N120 is a high-performance IGBT capable of delivering reliable and high-speed switching for various power applications. Its low saturation voltage, co-packed diode, and dual IGBT configuration make it an ideal choice for high-power inverter designs that require both high efficiency and versatility.
