C242A473J20A201

Name: C242A473J20A201
Brand: Jinjiana Electronic Co.,Ltd.
Availability: InStock

Buy C242A473J20A201

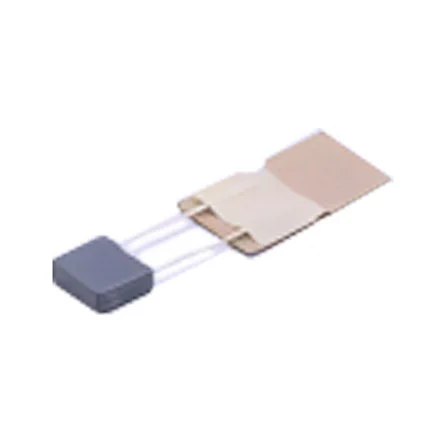

C242A473J20A201 of Electronic Component Identification Guide

C242A473J20A201 of Basic Electronic Components

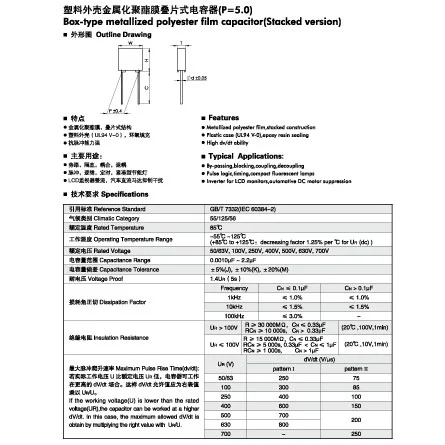

C242A473J20A201 of Basic Electrical Components

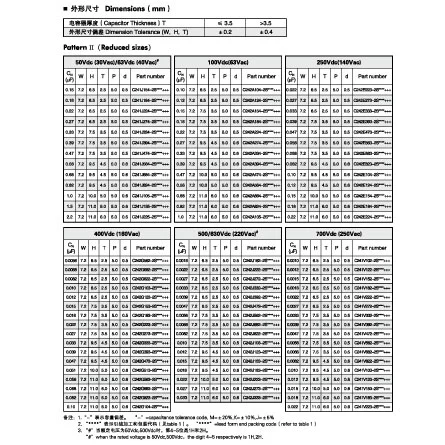

C242A473J20A201 of Basic Components of Electric Circuit

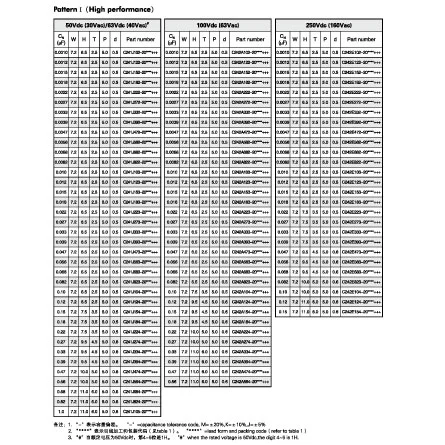

C242A473J20A201 of Basic Components Used in Electronics

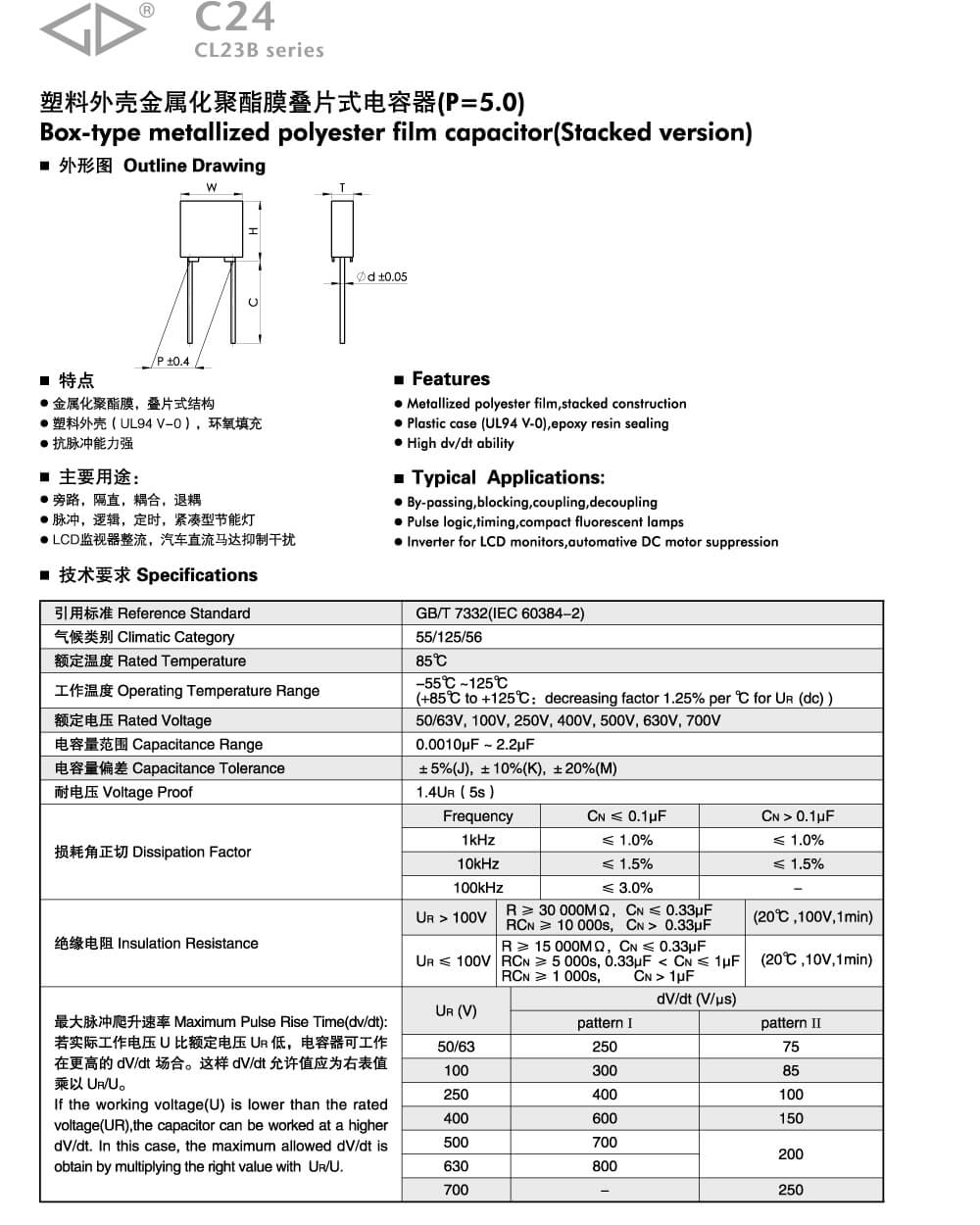

Features Of C242A473J20A201

Metallized polyester film,stacked construction
Plastic case (UL94 v-0),epoxy resin sealing
High dv/dt ability

Typical Applications of C242A473J20A201

By-passing, blocking, coupling, decoupling

Pulse logic, timing, compact fluorescent lamps

inverter for LCD monitors, automotive DC motor suppression

Specifications of C242A473J20A201

Reference Standard	GB/T 7332(IEC 60384-2)
Climatic Category	55/125/56
Rated Temperature	85℃
Operating Temperature Range	-55℃-125℃ (+85℃ to+125℃: decreasing factor 1.25% per ℃ for U_R(dc))
Rated Voltage	50/63V, 100V, 250V, 400V, 500V, 630V, 700V
Capacitance Range	0.0010μF～2.2μF
Capacitance Tolerance	±5%(J), ±10%(K), ±20%(M)
Voltage Proof	1.4U_R(5s)
Dissipation Factor	Frequency			C_N≤0.1μF	C_N>0.1μF
	1kHz			≤1.0%	≤1.0%
	10kHz			≤1.5%	≤1.5%
	100kHz			≤3.0%	-
Insulation Resistance	U_R>100V	R≥ 30000MQ, C_N≤0.33μF RC_N≥10000s, C_N>0.33μF				(20℃,100V,1min)
	U_R≤100V	R≥15000MQ,CN≤0.33μF RC_N≥5000s, 0.33μF<C_N≤1μF RC_N≥1000s, C_N>1μF				(20℃,10V,1min)
If the working voltage(U) is lower than the rated voltage(UR), the capacitor can be worked at a higher(dv/dt). In this case, the maximum allowed dV/dt is obtain by multiplying the right value with U_R/U.	U_R(V)		dV/dt (V/μs)
			pattern I		pattern II
	50/63		250		75
	100		300		85
	250		400		100
	400		600		150
	500		700		200
	630		800
	700		-		250
