2SC4116-Y

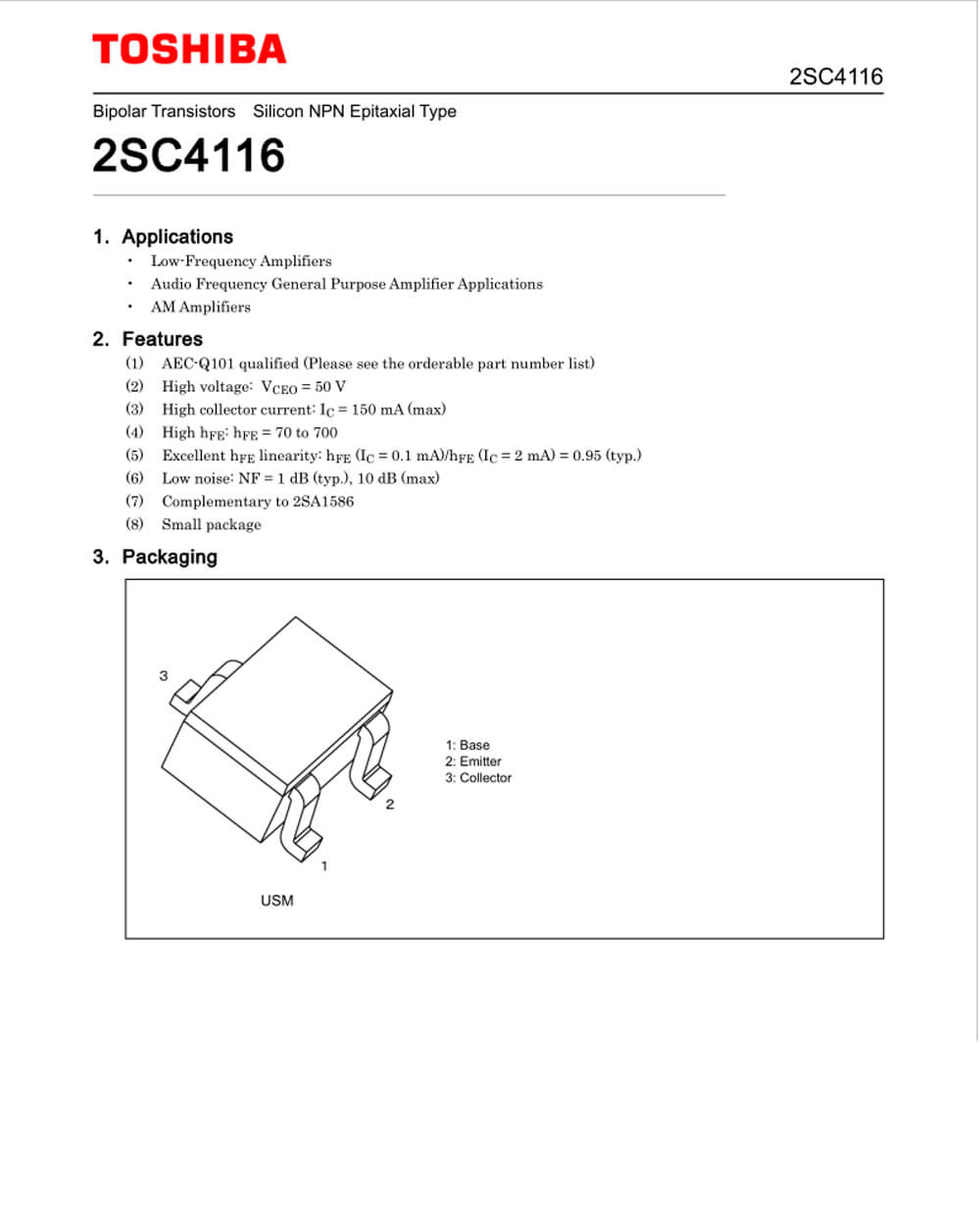

Features Of 2SC4116-Y
  • AEC-Q101 qualified (Please see the orderable part number list)

  • High voltage: V CEO = 50 V

  • High collector current: I C = 150 mA (max)

  • High h FE : h FE = 70 to 700

  • Excellent h FE linearity: h FE (I C = 0.1 mA)/h FE (I C = 2 mA) = 0.95 (typ.)

  • Low noise: NF = 1 dB (typ.), 10 dB (max)

  • Complementary to 2SA1586

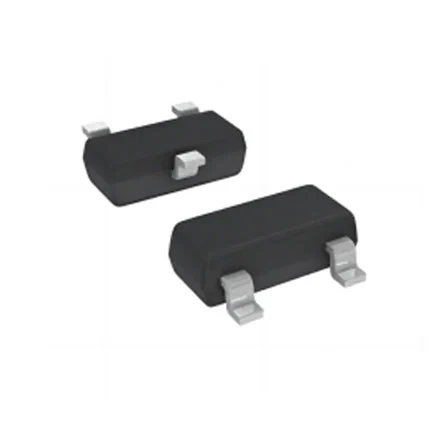

  • Small package

Details Of 2SC4116-Y


Details Of 2SC4116-YSpecifications Of 2SC4116-YZkhk 2SC4116-Y

Zkhk Details Of 2SC4116-Y
