What is SSI and MSI (Small-Scale Integration and Medium-Scale Integration)?

What Are SSI and MSI in Electronics?

SSI (Small-Scale Integration) and MSI (Medium-Scale Integration) refer to two distinct stages in the development of integrated circuits (ICs) that played a pivotal role in the history of electronics. SSI involves fewer logic gates, while MSI integrates more complex functions into a single chip, marking significant advances in circuit design.

Why Are SSI and MSI Important in Modern Electronics?

These integration levels were essential stepping stones that enabled the rapid development of modern electronics. By reducing the number of individual components and allowing more functionality within a single chip, SSI and medium-scale integration MSI helped shrink the size of devices, increase their reliability, and pave the way for the more complex integration seen today in technologies like smartphones and computers.

Understanding SSI (Small-Scale Integration)

What Is SSI in Electronics?

Small-Scale Integration SSI refers to integrated circuits that contain a relatively small number of logic gates, typically fewer than 10 per chip. These circuits were among the first to be used commercially and were key in early computing and digital logic applications.

Examples of SSI Devices

SSI devices typically feature simple components like logic gates (AND, OR, NOT) and basic flip-flops. These chips could only handle basic functions and were often combined with other SSI chips to perform more complex tasks.

Basic Logic Gates in SSI

The most common building blocks of SSI circuits are simple logic gates, such as:

• AND gates: perform logical conjunction

• OR gates: perform logical disjunction

• NOT gates: perform logical negation

The Role of SSI in Early Electronics

SSI circuits were instrumental in the development of early computers and digital systems. By integrating multiple transistors into a single chip, SSI helped reduce the size, power consumption, and cost of electronics compared to earlier discrete transistor designs.

Advantages and Limitations of SSI

• Advantages:

• Reduced size and complexity compared to circuits made from individual transistors.

• Increased reliability and efficiency in digital circuits.

• Limitations:

• SSI circuits had limited functionality, often requiring multiple chips to build even a basic system.

• The small number of components limited the complexity of the operations they could perform.

Understanding MSI (Medium-Scale Integration)

What Is MSI in Electronics?

Medium-Scale Integration (MSI) involves integrating more components onto a single chip than SSI, typically between 10 and 100 logic gates. MSI chips perform more complex functions than SSI and were a major advancement during the 1960s and 1970s.

Examples of MSI Devices

MSI chips are designed to handle more intricate tasks compared to SSI devices. Some common examples include:

• Multiplexers: Devices that select one of several input signals and forward the selected input into a single line.

• Decoders: Circuits that convert coded inputs into coded outputs, often used in memory and communication systems.

Common MSI Components (Multiplexers, Decoders, etc.)

• Multiplexers: These are essential in digital systems where multiple data streams need to be managed. A 4:1 multiplexer, for example, can handle four inputs but only transmit one at a time.

• Decoders: Commonly used in address decoding within computer memory systems, decoders translate binary information into a specified output.

How MSI Transformed the Industry

MSI revolutionized the electronics industry by enabling the creation of more complex and powerful digital systems. These chips provided a higher level of functionality while still being affordable and efficient, helping to reduce the number of components needed in devices.

Benefits and Drawbacks of MSI

• Benefits:

• Increased functionality on a single chip, allowing for more compact designs.

• Greater reliability compared to using multiple SSI chips for the same task.

• Drawbacks:

• MSI, while more advanced than SSI, still limited the complexity of circuits compared to later LSI (Large-Scale Integration) and VLSI (Very Large-Scale Integration) developments.

Comparing SSI and MSI

Key Differences Between SSI and MSI

• Component Count: SSI circuits contain fewer than 10 logic gates, while MSI can hold between 10 and 100 gates.

• Functionality: SSI circuits perform basic tasks, while MSI circuits can handle more complex operations like multiplexing and decoding.

• Era of Use: SSI was prominent in the early days of integrated circuits, while MSI marked a progression toward more complex and functional chips.

How SSI and MSI Have Evolved Over Time

Over the years, SSI and MSI have largely been replaced by LSI, VLSI, and now ULSI (Ultra-Large Scale Integration) technologies. While these early integration techniques are no longer the cutting edge, they laid the groundwork for modern chip design.

The Impact of SSI and MSI on Technology

How SSI and MSI Paved the Way for LSI and VLSI

SSI and MSI were crucial steps in the evolution of integrated circuits. They allowed engineers to integrate more components into smaller chips, a trend that eventually led to LSI (Large-Scale Integration) and VLSI (Very Large-Scale Integration). These advancements made modern computers, smartphones, and other high-tech devices possible.

SSI, MSI, and the Growth of Microelectronics

The growth of microelectronics owes much to the foundations laid by SSI and MSI. By reducing the size and complexity of circuits, these integration methods helped usher in an era of increasingly powerful and efficient electronic devices.

SSI and MSI represent two critical stages in the history of electronics. By integrating small to medium numbers of logic gates into a single chip, these technologies paved the way for more advanced circuits that power today's devices. While modern electronics have surpassed SSI and MSI in complexity, the principles they introduced continue to influence circuit design today.

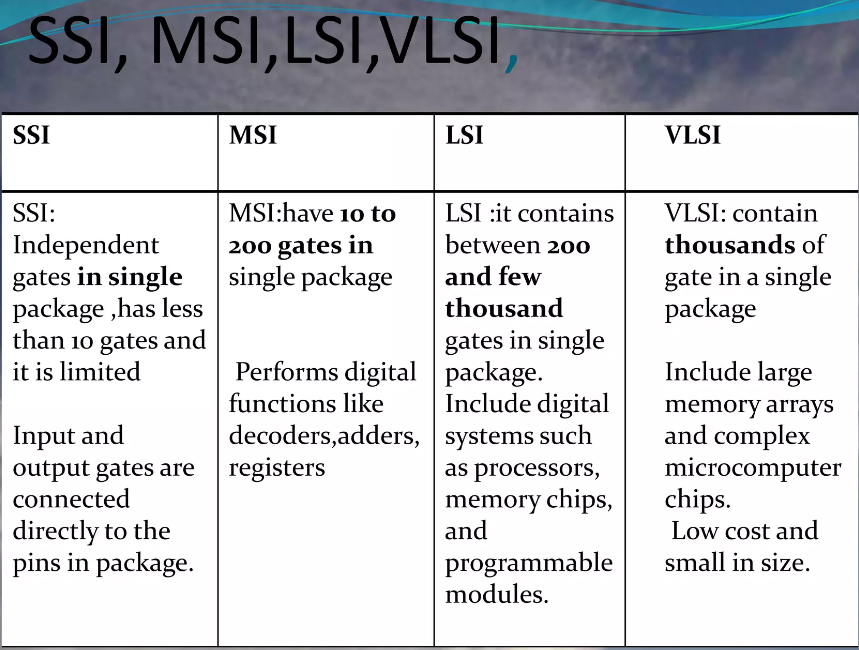

image from SlideShare.net
