BYG20G

Name: BYG20G
Brand: Jinjiana Electronic Co.,Ltd.
Availability: InStock

Buy BYG20G

BYG20G of Electronic Component Wholesale

BYG20G of Electronic Components for Sale

BYG20G of Electrical and Electronic Components

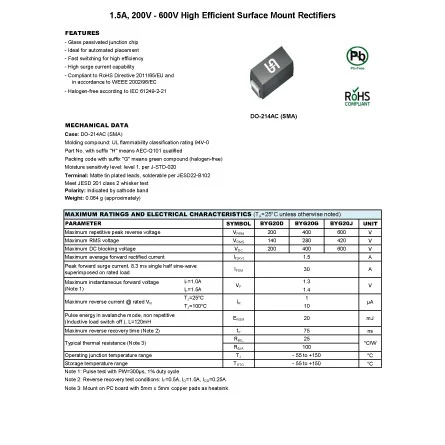

Features Of BYG20G

Glass passivated junction chip
Ideal for automated placement
Fast switching for high efficiency
High surge current capability
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
Halogen-free according to IEC 61249-2-21

MECHANICAL DATA of BYG20G

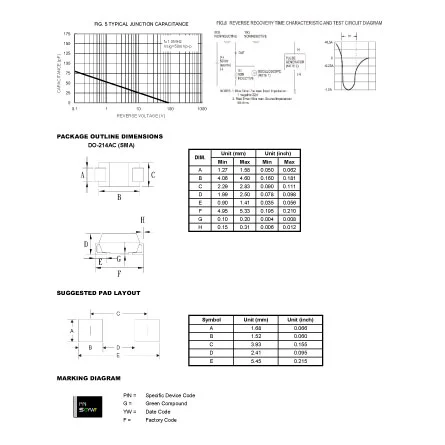

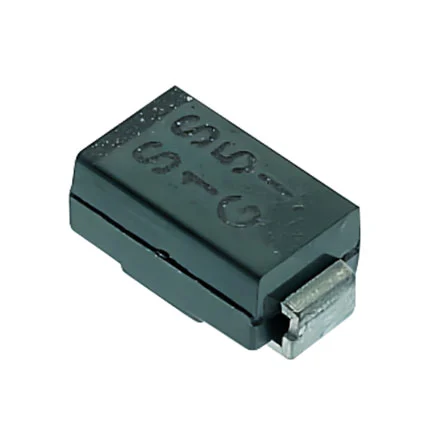

Case: DO-214AC (SMA)

Molding compound: UL flammability classification rating 94V-0

Part No. with suffix "H" means AEC-Q101 qualified

Packing code with suffix "G" means green compound (halogen-free)

Moisture sensitivity level: level 1, per J-STD-020

Terminal: Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 2 whisker test

Polarity: Indicated by cathode band

Weight: 0.064g(approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(T_A=25℃ unless otherwise noted)

PARAMETER	SYMBOL	BYG20D	BYG20G	BYG20J	UNIT
Maximum repetitive peak reverse voltage	V_RRM	200	400	600	V
Maximum RMS voltage	V_RMS	140	280	420	V
Maximum DC blocking voltage	V_DC	200	400	600	V
Maximum average forward rectified current	I_F(AV	1.5			A
Peak forward surge current,8.3 ms single half sine-wave superimposed on rated load	l_FSM	30			A
Maximum instantaneous forward voltage l_F=1.0A (Note 1) l_F=1.5A	V_F	1.3 1.4			V
Maximum reverse current @rated VR T_J=25℃ T_J=100℃	l_R	1 10			μA
Pulse energy in avalanche mode, non-repetitive (Inductive load switch off), L=120mH	E_RSM	20			mJ
Maximum reverse recovery time (Note 2)	t_rr	75			ns
Typical thermal resistance(Note 3)	R_θJL	25			℃/W
Typical thermal resistance(Note 3)	R_θJA	100			℃/W
Operating junction temperature range	T_J	-55 to +150			℃
Storage temperature range	T_STG	-55 to +150			℃
