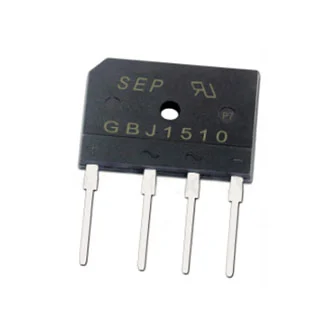

Rectifier Bridge

Rectifier bridges are essential components in electronic circuits that are responsible for converting alternating current (AC) to direct current (DC). This process is necessary because most electronic devices operate on DC voltage. Rectifier bridges are typically made up of diodes that are arranged in a specific configuration to effectively change the direction of the AC voltage. By forcing the current to flow in one direction, rectifier bridges ensure a stable and constant DC voltage is supplied to the device, allowing it to function properly.

Rectifier bridges work by using diodes to convert AC to DC voltage. When an AC voltage is applied, one set of diodes conducts during the positive half-cycle, and the other set conducts during the negative half-cycle. The conducting diodes allow the current to flow in one direction and prevent it from flowing in the opposite direction, effectively converting the AC voltage to a DC voltage. The resulting DC voltage is a pulsating voltage with a frequency of twice that of the input AC voltage. To obtain a smoother DC voltage, additional components such as resistors, capacitors, or voltage regulators are added to the circuit.

Three-phase rectifier bridges are used to convert three-phase AC power to DC power. They require at least six diodes arranged in a specific configuration to effectively change the direction of the AC voltage. Three-phase rectifier bridges have several advantages over single-phase rectifiers, such as higher power output and reduced ripple voltage. However, they can also be more expensive and complex to implement. Additionally, three-phase rectifier bridges can produce interharmonic distortion in certain applications, which can affect the performance of the connected electrical equipment. As such, it is important to consider the advantages and limitations of three-phase rectifiers when selecting the appropriate rectifier bridge for a specific application.
