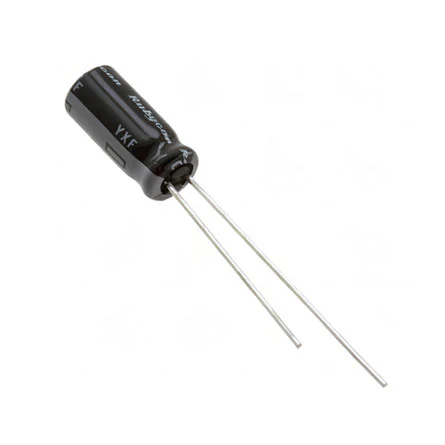

A capacitor is a fundamental electronic component found in all electronic devices. It stores electric charge by employing two conductive plates separated by an insulating dielectric material. The metal plates store charges of equal value, but opposite polarity, creating an electric field between them. Capacitors are commonly used to block direct current, smooth rectified output of power supplies, filter out unwanted frequency components, and decouple signals in electronic circuits. They are also utilized as energy storage and voltage regulation devices in electronic and electrical circuits. Capacitors come in different types, including ceramic, tantalum, electrolytic, and film capacitors, each with different capacitance values, voltage ratings, tolerance, and other characteristics.
A capacitor is rated by its capacitance, voltage rating, tolerance, and other characteristics. Capacitance is measured in Farads (F), which denotes the amount of electrical charge that can be stored in the capacitor when a voltage is applied across its terminals. The voltage rating indicates the maximum voltage that can be safely applied to the capacitor. The tolerance of a capacitor represents the maximum variation in capacitance that is allowed, usually expressed as a percentage. Other characteristics include the temperature coefficient, which specifies how much the capacitance changes with temperature, as well as the equivalent series resistance (ESR) and equivalent series inductance (ESL), which represent the effects of parasitic resistance and inductance in the capacitor. These characteristics are important when selecting the right capacitor for a specific application. Capacitors are manufactured with different specifications to suit a wide range of electrical and electronic applications, and selecting the right capacitor requires careful consideration of these factors.
The function of a capacitor is to store electrical energy and release it when needed. It is a passive component, meaning it does not require an external power source to function. Capacitors are commonly used in electronic circuits to block or filter direct current (DC) signals and allow alternating current (AC) signals to pass, acting as a filter to smooth out voltage or current fluctuations. They can also be used to store energy in electrical devices, such as flash cameras, and in power supplies to smooth out voltage ripples. Capacitance, voltage rating, and other factors determine how effectively a capacitor can store energy and smooth out voltage or current. Capacitors come in various types, including ceramic, electrolytic, tantalum, and film capacitors, each with different characteristics and applications.
Capacitors have a wide range of applications in electronic circuits. They are commonly used for filtering, which involves removing unwanted or excess signals from electronic circuits. Capacitors are also used in timing, where they control the length of time a signal remains active, and in energy storage, where they store energy for later use. Additionally, capacitors are used in power supply decoupling, where they smooth out fluctuations in the input voltage to ensure that the output voltage is stable and consistent. Capacitors are also widely used in electronic components such as transformers, motors, and generators. They are often used to reduce the amount of electrical noise that can be generated by these devices, and to reduce the amount of electrical interference that can be caused by other electronic devices in the vicinity. Overall, capacitors are an essential component in many electronic circuits, and they play a critical role in ensuring that electronic devices function properly and reliably. They are available in a wide range of types and sizes, with different capacitance and voltage ratings, making them suitable for use in a diverse range of electronic applications.
The symbol for a capacitor is two parallel lines with one curved line in between.
No, capacitors cannot store energy indefinitely. Eventually, the charge will leak away due to resistance in the capacitor and surrounding circuitry.
Capacitors store charge and release it rapidly, while batteries store energy and release it slowly over a longer period of time. Batteries also have a voltage that decreases over time as they discharge, while capacitors maintain a constant voltage until they are fully discharged.
